HANOK: adaptation / preservation / extension

adaptation 1-01.png

An excerpt of a study completed in Seoul into the methods through which hanoks have been adapted and preserved. The study explores how uses of hanoks have changed to meet the needs of modern dwellers and other influencers of structural adaptation.

/ adaptation /

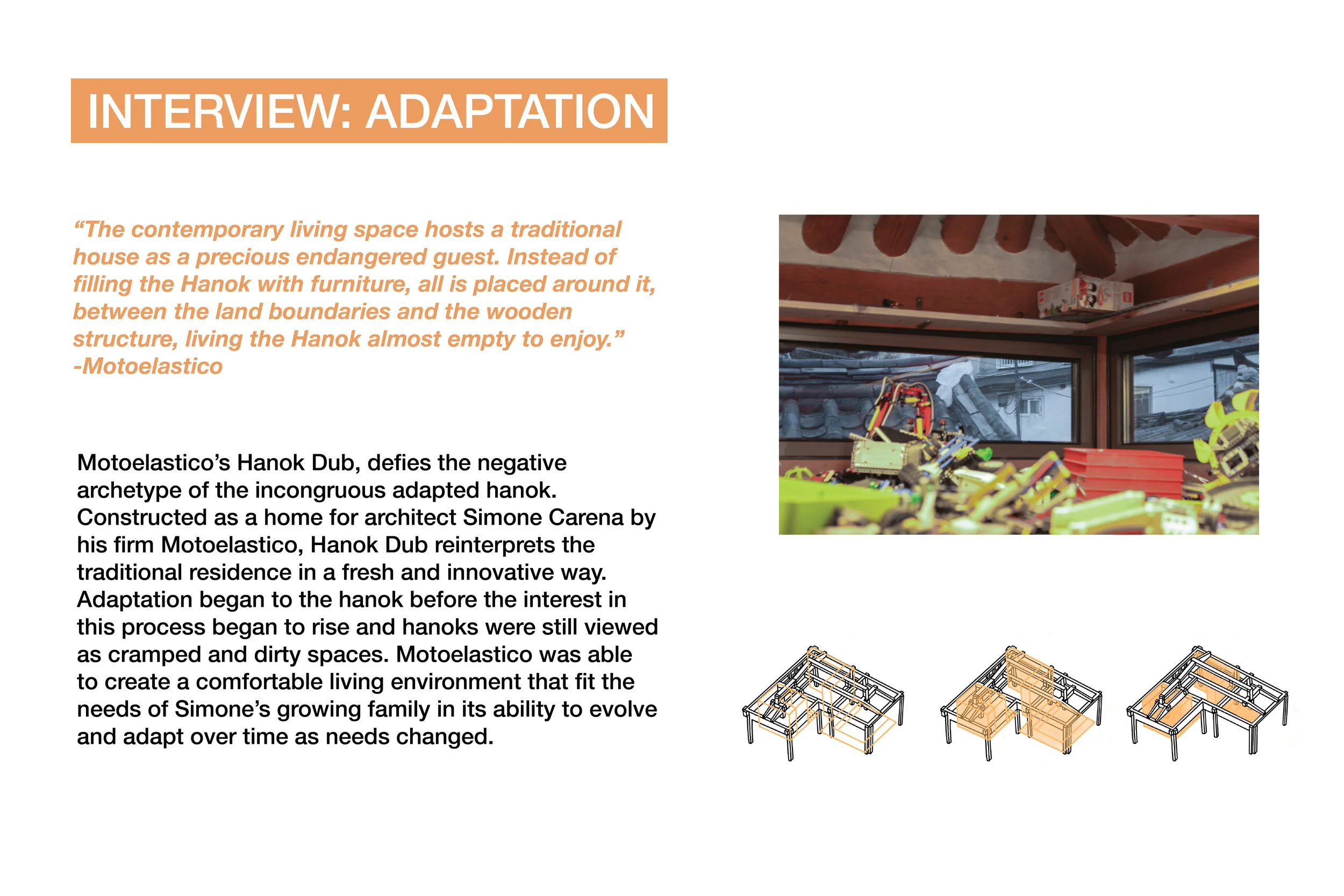

Hanok Dub, by Motoelastico, is a home for a family with contemporary dwelling needs. Modern amenities have been added to facilitate contemporary living including a western kitchen, bathrooms, basement space, and modern ondol system. These new amenities envelope the traditional structure, acting as a protective wrapping.

The hanok is an ongoing transformation,

designed to change and evolve with the

family residing in it. As their needs and living habits change, the house changes with them. This evolving and unstructured nature creates a lively environment that supports freedom, activity, and movement.

adaptation 2-01.png

interactions between old and new

adaptation 3-01.png
adaptation 4-01.png

movement through the home

/ preservation /

David Kilburn’s hanok is one of the rare examples of a hanok that has authentically preserved the entirety of its structure. Kilburn aims to preserve his hanok’s original form and function, making only minor alterations using traditional techniques and materials. He believes that this is an authentic method of preservation that enables his hanok to remain relevant as a place to observe the traditional culture of Korea.

Minor alterations to the hanok have occurred; where the kitchen once existed is now a bathroom, in the inner courtyard, a long narrow wooden veranda was constructed to link the inner and outer quarters and a foot has been added to the central living area to extend the space. These alterations have been made using traditional materials, Kilburn going to great lengths to accumulate red pine for the veranda.

preservation 1-01.png
preservation 3-01.png
preservation 2-01.png

/ extension /

Urban hanoks are traditionally modest single floor dwellings, their design having been informed by a less consumer driven society. As Korean society has evolved and become accustomed to modern accommodation with an increased allowance for consumer goods, what was once considered ample space in a hanok is now seen as a scarcity.

extension 1-01.png

CoRE architects chose to reinterpret the

common hanok extension in Sinseoul-dong. CoRE was committed to preserving the structure of the existing hanok, barely altering its shell and instead constructing a new volume that could, in effect, float above the hanok to create harmony and balance. The new volume, while slightly extending the ground level, exists predominantly above the hanok, enabling the structures to appear as separate entities. This respects the

traditional architecture while each volume enhances and complements the other.

Spatial programming

Original hanok

Screen Shot 2021-07-02 at 2.56.47 pm.png
Screen Shot 2021-07-02 at 2.56.47 pm.png

Extended hanok

Screen Shot 2021-07-02 at 2.56.47 pm.png
Screen Shot 2021-07-02 at 2.56.47 pm.png
